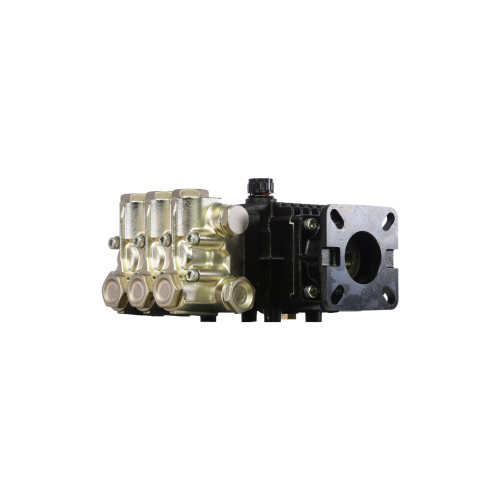

SUPER SERIES XHDH300SS Solid Shaft Pump - 13.2L/MIN @ 200BAR, 3600RPM, 3/4 inch (19.05mm) hollow Shaft.
3600 RPM ideal to be driven by:
Petrol engines: HONDA GX160 ; HONDA GX200 ; VLCP07 ; VLCP065 - Maximum pressure must be set to suit the power rating of these motors. (ALWAYS MAKE SURE the motor is running at least 15% within its maximum amperage)
6.5 HP required to run at full pressure:
-
Super robust transmission system, 3-piston alternating volumetric pump for use on heavy use cleaning units and industrial systems to reduce downtime and running costs.
-
SUPER Robustly made with a perfect balance of weight to ensure minimum fatigue on motor and gearbox mountings.
-
NICKEL PLATED SOLID BRASS PUMP HEAD - Greater heat & weather resistance
-
Pump body and cover in die-cast aluminium alloy with cataphoretic coating. Cathaphoresis painting is a surface treatment intended to give metal elements and other alloys a considerable resistance to chemical and environmental corrosion.
-
Rear cover with oil drain outlet and oil sight glass. Cap with dipstick for oil level on body pump.
-
Pistons driven by super series crank-connecting rod mechanism.
-
Pump shaft in pressed high-strength steel.
SEAL KIT VTPKIT7
VALVE KIT VTPKIT2
SITE GLASS VTPSSGSS
