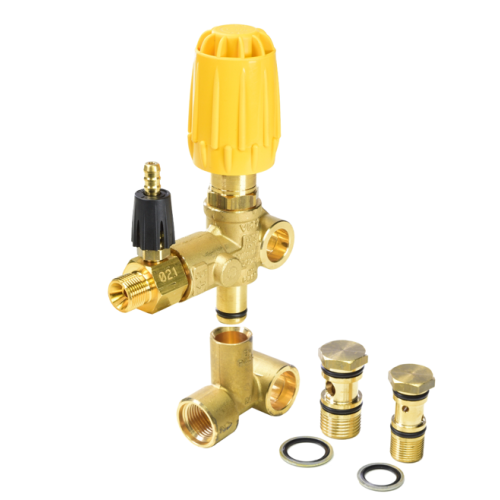

'OptiSpare’ Universal Banjo Unloader Valve with inlet filter and chemical injector: Alternative for C0.193 & C0.194 unloader valves
- Max Pressure: 250 bar / 3700 psi
- Flow Rate: 25 L/min
- Max Water Temperature: 90°C
- Body: Brass
- Inlet: 1/2”F BSP
- Outlet: 3/8”M BSP
Banjo Bolt-on type Unloader Valve:
Annovi Reverberi Pumps: - XT Pumps
- XM Pumps
- XR Pumps
- HPE Pumps
Comet Pumps: - FW Pumps
Bertolini Pumps: - TW Pumps
- TML Pumps
- TWE Pumps
VML Pumps
IMPORTANT SAFETY NOTE: BEFORE powering the system:
Step 1: the unloader valve MUST be set at MINIMUM pressure;
Step 2: The bypass port MUST be open;
Step 3: Then set the unloader to the required pressure (which MUST be LESS than the maximum unloader pressure of the unloader valve AND LESS than the maximum pressure of your equipment);
Step 4: Set the locking nut/s so this pressure (the running pressure and the lock line pressure) cannot be exceeded.
CAUTION: This is high pressure equipment and if the above safety and set up rules are not followed, serious damage to equipment and injury to humans can occur. The caps and joints can be blown clean out of their threads which cause dangerous projectiles. Please be free to ring 01522 787978 if you need any assistance
