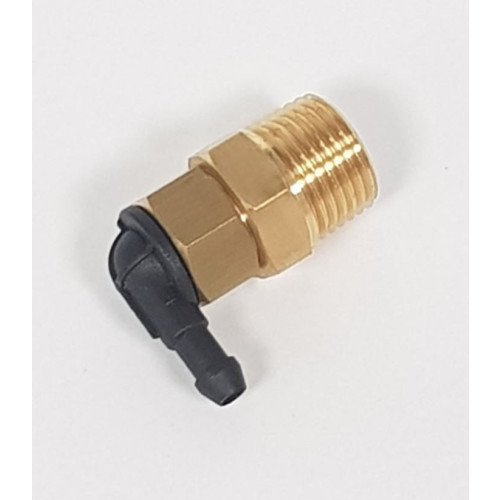

Thermal Protector Valve 1/2M BSP for V-TUF Pressure Washers

Thermal relief valve with 1/2M BSP thread (21mm OD).

Must be fitted on the low pressure side of the pump.

Seal all threads with thread tape when fitting.

Found on the TORRENT 5 & TORRENT 3 pressure washers on the low pressure 1/2 inlet port of the pump.

This valve opens to discharge water in the pump head when the temperature of the water in the pump get too hot (if the pump is left in bypass). This to protect the pump from overheating and damaging seals & valves.
