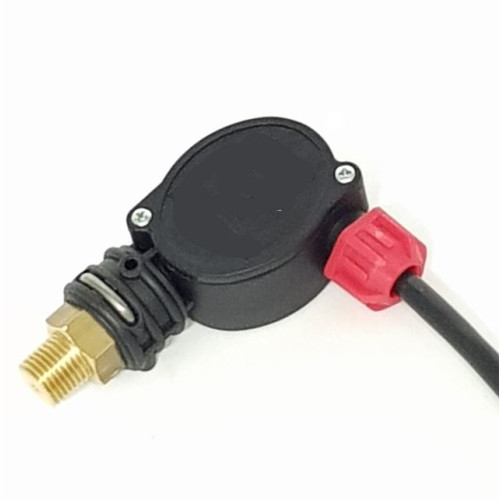

Pressure Switch Small 25 Bar 6A with 3 Core Lead | V-Tuf

6amp rated pressure switch which is activated at 25 bar / 368psi.

• Max pressure: 280 bar / 4060 psi
• Max temperature: 75 deg C / 167 degF
• 3 core cable length: 1100mm
• IP55 rated
• 1/4M BSP thread (If you need a 3/8 thread please order 3/8"M x 1/4"F BRASS REDUCING BUSH - MFB06/04 )
• Easy service feature.
• Please note: if you replacing the older MTM switch with this, you must connect the blue wire where the red wire was and connect the blue wire where the red wire was.
